Gravity-Fed System — Inductor Tank + Stand

Load 250 lbs. Blast Until the Job’s Done.

The heavy-duty end of the gravity-fed delivery system — a rigid full-drain cone tank on a purpose-built stand, built for full frames, full shells, and the jobs you get paid for.

If you’re pricing out a pressure pot just to get more run time out of your rig — stop.

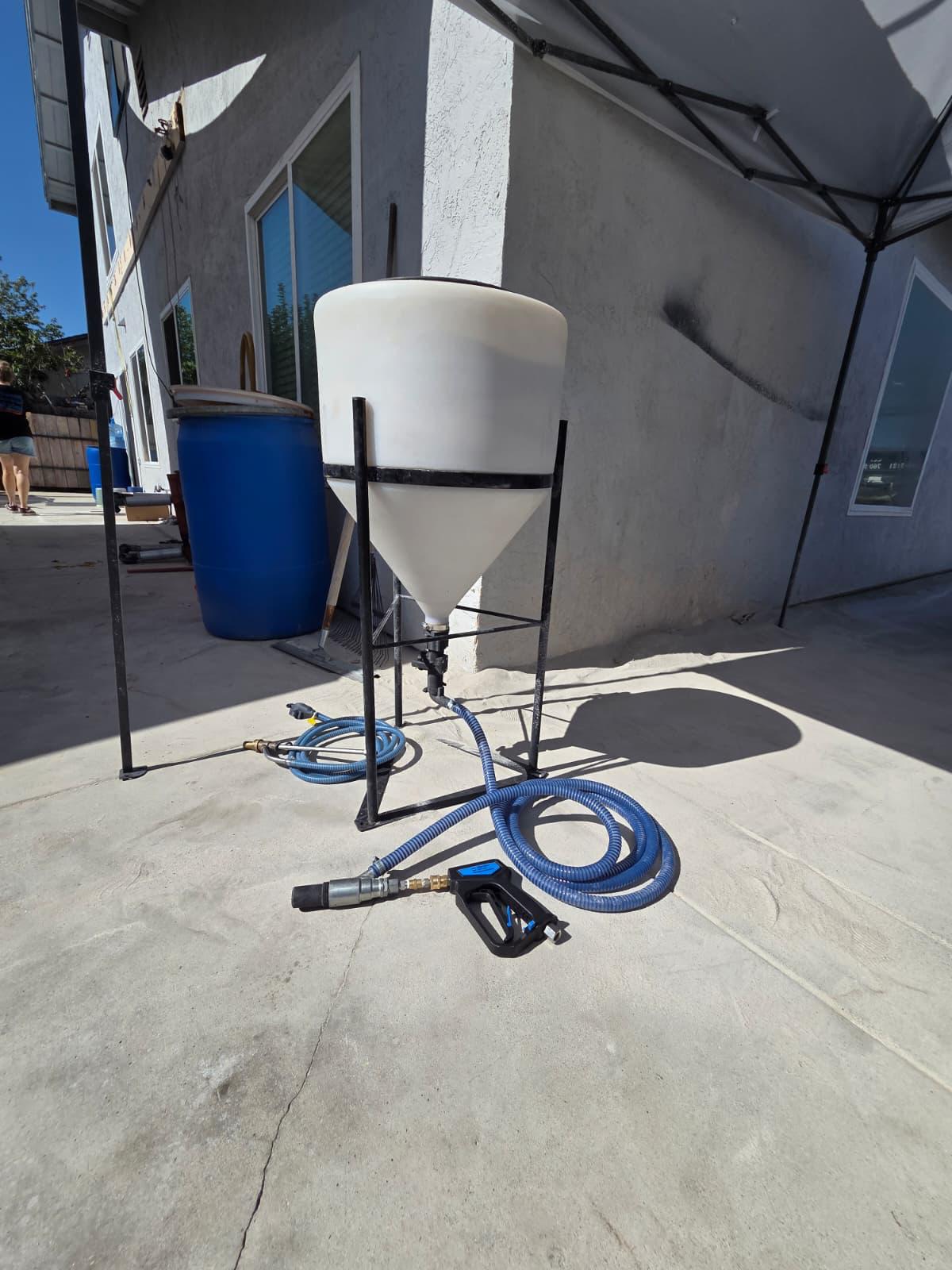

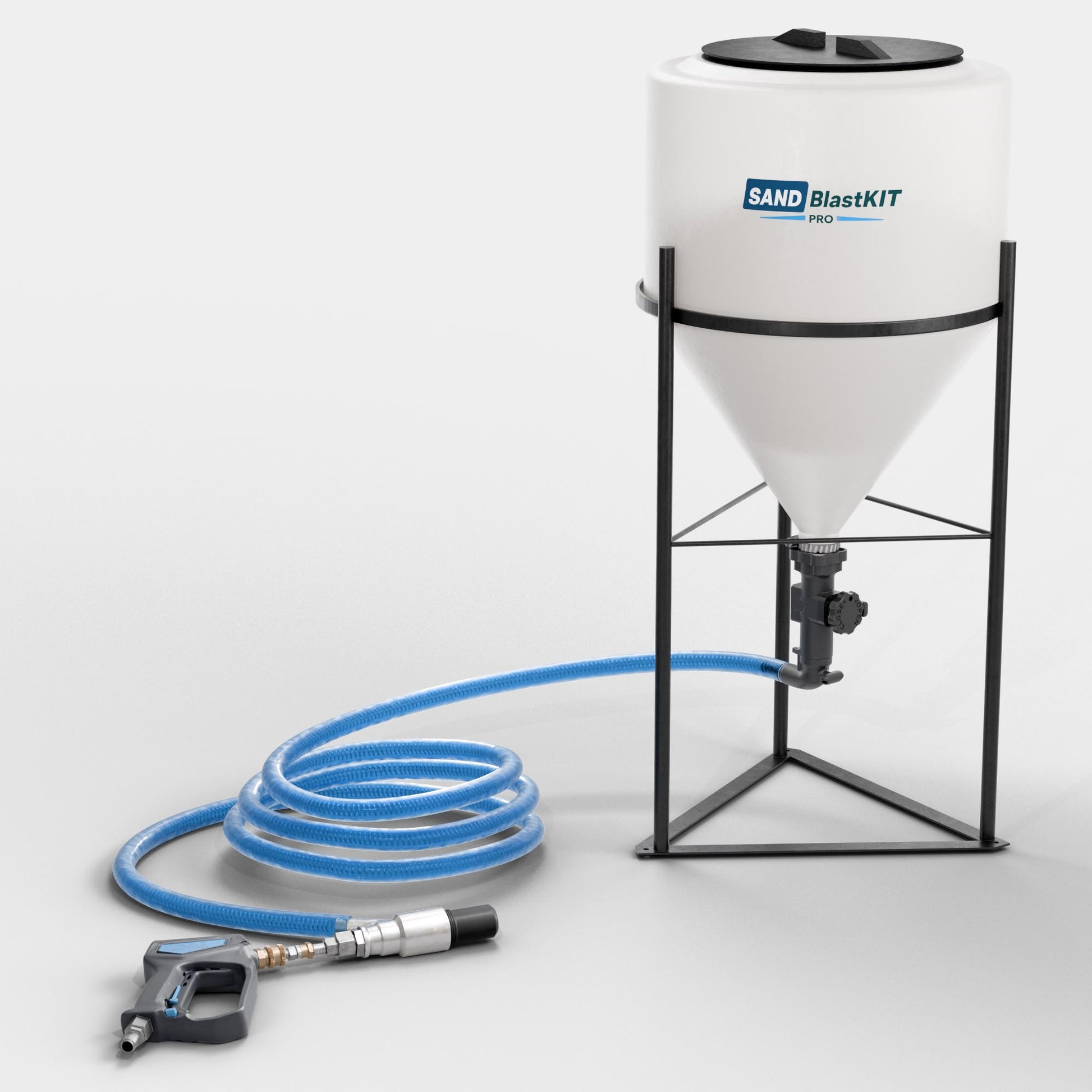

The Inductor Tank + Stand runs the same patent-pending metering sleeve valve and air assist system that made the gravity-fed delivery system work, scaled up and built solid. A rigid roto-molded cone tank sitting on a dedicated steel stand, holding up to 250 lbs of media in a single fill.

Pour it in. Dial it in. Work.

Up to 250 lbs per fill · Rigid full-drain cone · Dedicated heavy-duty stand · Sealed vented lid · Fits Ceramic Series and Carbide 600 · No compressor required · Engineered in the USA

WHY THE TANK

✓ Up to 250 lbs in one fill. Fifteen gallons of dry media, depending on what you’re running. That’s a full side of a car, or a complete frame, without walking back to the shop. On the BMW 2002 shell, the whole job ran fifteen 90 lb bags — this is how you feed a job that size without your day turning into refills.

✓ Rigid. Nothing flexes, nothing sags, nothing shifts. Roto-molded polyethylene, one solid piece, no seams to split. Load it to the top and the geometry doesn’t change — the tank holds its shape and the valve holds its position from the first pound to the last. Set your flow once and it stays where you set it.

✓ Full-drain 54° cone — it actually empties. This is the same cone design farms use to mix and dump chemical in the field, engineered so nothing settles in a corner and nothing bridges. Media keeps falling straight down into the metering sleeve valve until the tank is genuinely empty. You blast what you paid for instead of leaving a wedge of it stuck in the bottom.

✓ Solid on the ground. The tank drops into a dedicated stand built 4” taller than standard specifically to clear the full-drain cone — so the valve sits at working height and the media hose runs straight out with nothing in its way. A 20” × 20” footprint and a loaded tank sitting low and centered. Shop floor, gravel, dirt, grass. Set it down and it stays put.

✓ Built for the long haul. Polyethylene doesn’t rust, doesn’t rot, and doesn’t care about weather. UV-inhibited for life outdoors. This is equipment built to sit in a yard, get loaded and unloaded a hundred times, and still be the same tank in five years.

✓ Sealed vented lid — 12” threaded. Load it and leave it. Rain, dust, and shop debris stay out, and your media stays dry. Wet media is the number one cause of a slow feed, and a sealed lid is how you never deal with it.

✓ See your level without stopping. Translucent tank with gallon markings molded in. Glance over mid-job and know exactly what you’ve got left, so you top off on your terms instead of finding out at the worst possible moment.

✓ Doesn’t clog. Media falls straight down through the patent-pending metering sleeve valve into the air assist system. No pickup tube to jam. Nothing to shake.

✓ Make it part of the rig. Bolt it to a trailer, a cart, or a shop corner and it becomes a permanent blasting station — a fixed piece of your setup instead of something you assemble at the start of every job.

✓ Feeds every nozzle we make. Ceramic Series and Carbide 600, fully interchangeable, quick swap. Nozzle sold separately.

THE MECHANISM

Your pressure washer does the work. No compressor, no pressure pot, no cabinet, no dust containment plan.

The patent-pending metering sleeve valve sits at the bottom of the cone. Quarter turn to open — it locks in and holds. Below it, the air assist system mixes air into the media before it ever reaches the nozzle. That’s why the stream comes out continuous instead of surging.

Feeds abrasive media downward naturally — like an hourglass — so your washer only needs a little pull to maintain a perfect, steady feed.

No sputtering, no clogs, no shaking a bucket.

6-hour job. 5 minutes of downtime.

Full 1972 BMW 2002 shell — roof to rockers, heavy Bondo on a door and two quarter panels. Total downtime across the entire day was five minutes, and that was one fitting change. No clogs. No flow interruptions.

BUILT FOR BIG JOBS

• Full car shells and full frames — measured in hours, not minutes
• Farm and heavy equipment — implements, decks, loaders, gates, tanks
• Trailers, tube frames, dune buggies, truck beds
• Anyone blasting for money — uninterrupted run time is margin
• Shop rigs and trailer builds — a permanent station, not a setup you rebuild every time
• Concrete, graffiti, large metal panels, marine work

DIALING IT IN — WHAT “RIGHT” LOOKS LIKE

Have a test spot ready. Scrap panel, or just the concrete.

Watch the media hose. If you’ve ever seen sand run through the narrow point of an hourglass — smooth, continuous, no surging — that’s what you want to see. On a sunny day you can see it right through the line.

At the nozzle, the stream should still look like water, with the media carried inside it. Judge the rest by feel: the ricochet coming back should be a light ping of fine grains, barely felt.

Too much media and it bounces back like mini ping-pong balls. Not enough and you’re just spraying water. Sit just under “too much.”

Hose moving like a worm? Flow surging? Too much sand, not enough air. Back the meter off one full turn.

Dial to what you’re removing. Light paint needs far less media than heavy Bondo. Don’t waste sand.

RUN IT LIKE A PRO

Startup: Water first, always. Trigger pulled and water flowing before the valve opens.

Shutdown: Close the meter first, let the hose evacuate, then stop. Reopen the meter to restart.

Two seconds of discipline. It’s what keeps the next pull clean instead of clogged.

HOW IT RUNS

1. Set the stand on level ground and drop the tank in.
2. Pour your dry media straight in through the 12” opening — no funnel, dump it from the bag.
3. Connect the reinforced media hose to your nozzle assembly.
4. Trigger and water first.
5. Quarter turn on the sleeve valve — dial it in on your test spot.
6. Blast until the job’s done.

SPECS

WHAT’S IN THE BOX

• 1× 15-Gallon Full-Drain Inductor Tank
• 1× Dedicated Tank Stand
• 1× Patent-Pending Metering Sleeve Valve Assembly
• 1× Air Assist Inlet Section
• 1× Reinforced Media Hose
• 1× Step-by-Step Setup Guide

Nozzle head sold separately — pairs with the Ceramic Series ($127.98) or the Carbide 600 ($297).

FAQ

How much media does it hold?
Fifteen gallons — up to 250 lbs depending on what you’re running. Denser media weighs more per gallon.

Will it work with my pressure washer?
Electric or gas. GPM matters more than chasing peak PSI — the gravity-fed delivery system gives you control over the media instead of relying on suction to pull it. PSI range pending confirmation.

Which should I get — the tank or the bag?
Both run the same patent-pending metering sleeve valve and the same air assist system, so the blasting feels identical. The tank is the heavy-duty end of the line: more capacity per fill, a rigid full-drain cone, a sealed lid, and a build meant to live outdoors and get used hard for years. If you’re running full shells and frames or you want a permanent station on your rig, this is the one.

Do I need to bolt it down?
No. Loaded, it isn’t going anywhere. Bolt it to a trailer or cart if you want the whole rig to travel as one unit.

Can I leave media loaded in it?
Yes — that’s what the vented lid is for. Keep it dry and it’s ready to go next time.

What media should I run?
Dry media only. Crushed glass, garnet, and coal slag all run well. Sift reclaimed media through a stainless screen before it goes back in the tank.

How long do nozzles last?
Nozzles are wear items and we’d rather tell you up front. Roughly 10 hours at 2,500 PSI, 8 at 3,500, 6 at 4,000+. Aggressive 20 grit takes about another hour off. Keep spares for a big job.

Does it come with the stand?
Yes. Tank and stand ship together.

Fill it once. Finish the job.

30-day money-back guarantee. Real support for setup, media, and pressure washer questions. Replacement nozzles always in stock.

Complete the rig: Carbide 600 ($347) + Inductor Tank + Stand ($597) = $944.

Add-ons: Sand filter / sifter · Rust converter–inhibitor · AP1 conversion coating · Spare nozzles
